Flat Slim HDMI Mini FPV HDMI Cable Mini male HDMI 90 degree to Standard HDMI male Interface 90 degree for brushless gimbal handhold gimbal dsrl gimbal FPV drone Dji Rig Black 30CM
Price: $18.99
(as of Jan 30, 2025 01:10:36 UTC – Details)
1.Available length:30CM Approximate: 11.8 inches;Gold plated pins
2.Super soft and very light .only 5 g;Super soft Ribbon cable for brushless gimbal handhold gimbal dsrl gimbal FPV ground monitoring FPV aerial photography and aerial shooting ect

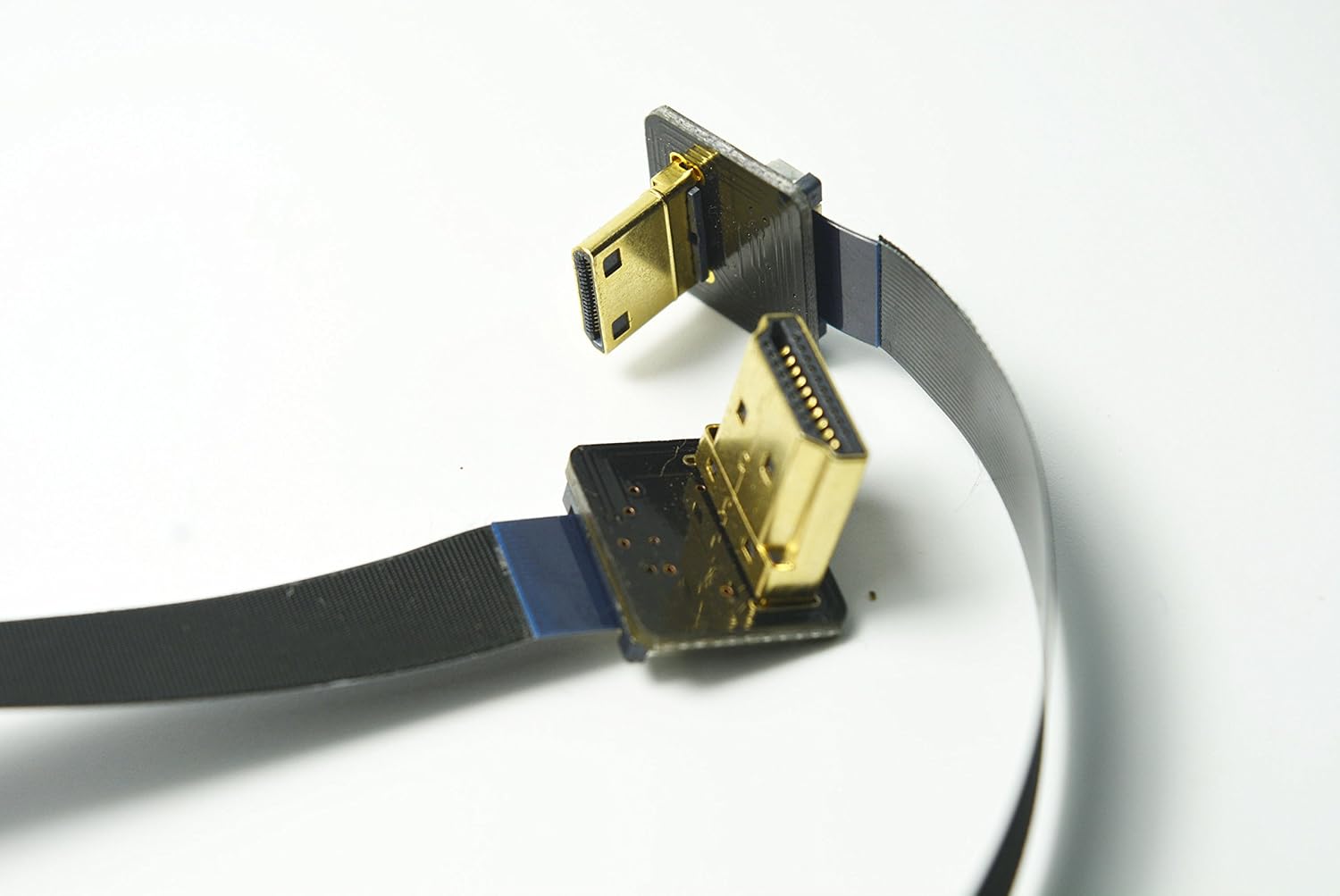

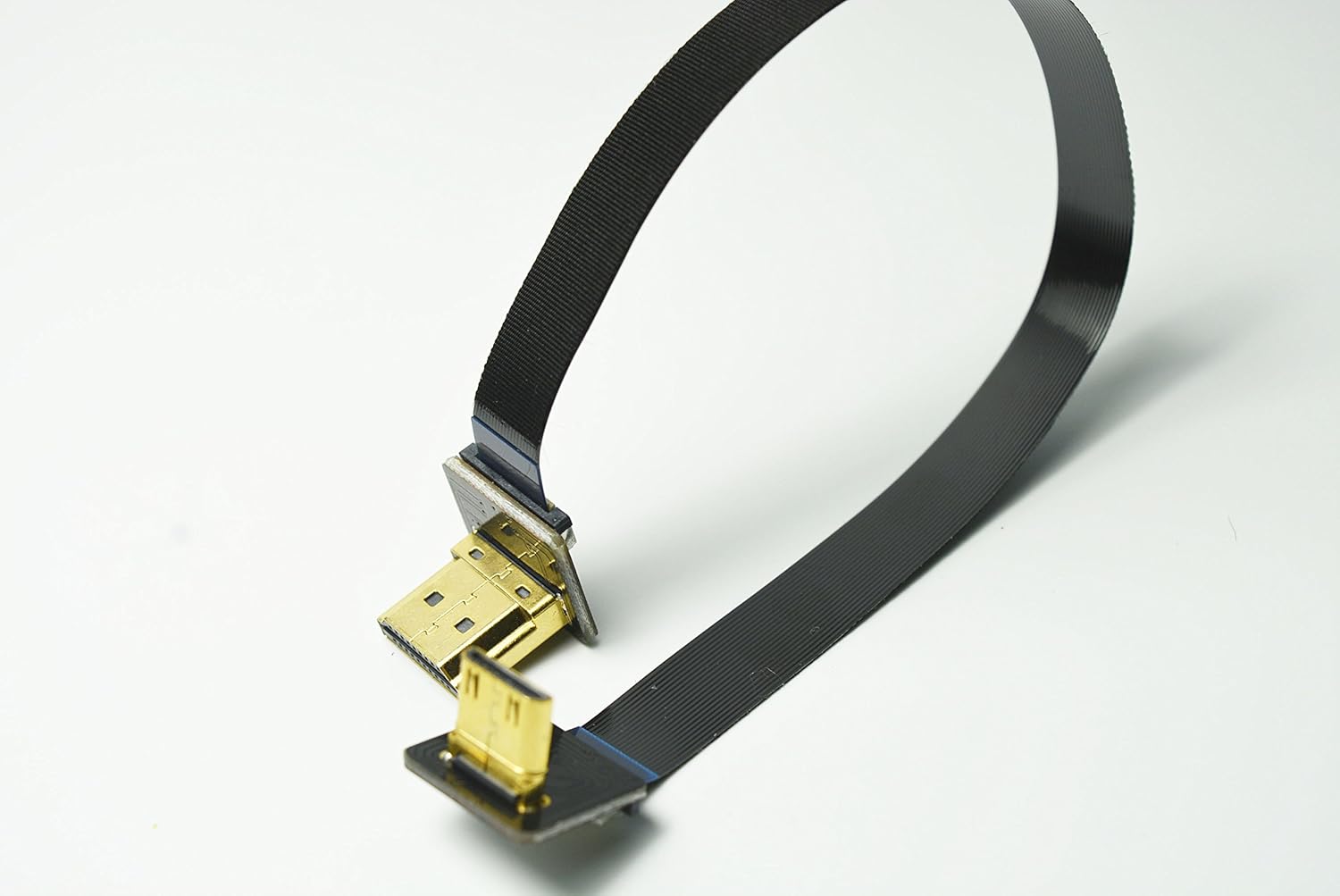

3.Mini HDMI Male 90 degree to Standard HDMI Male 90 degree interface (mini C-2 male hdmi to Standard A-2 male hdmi)
Both HDMI ends are 90 degree, please check the orientations

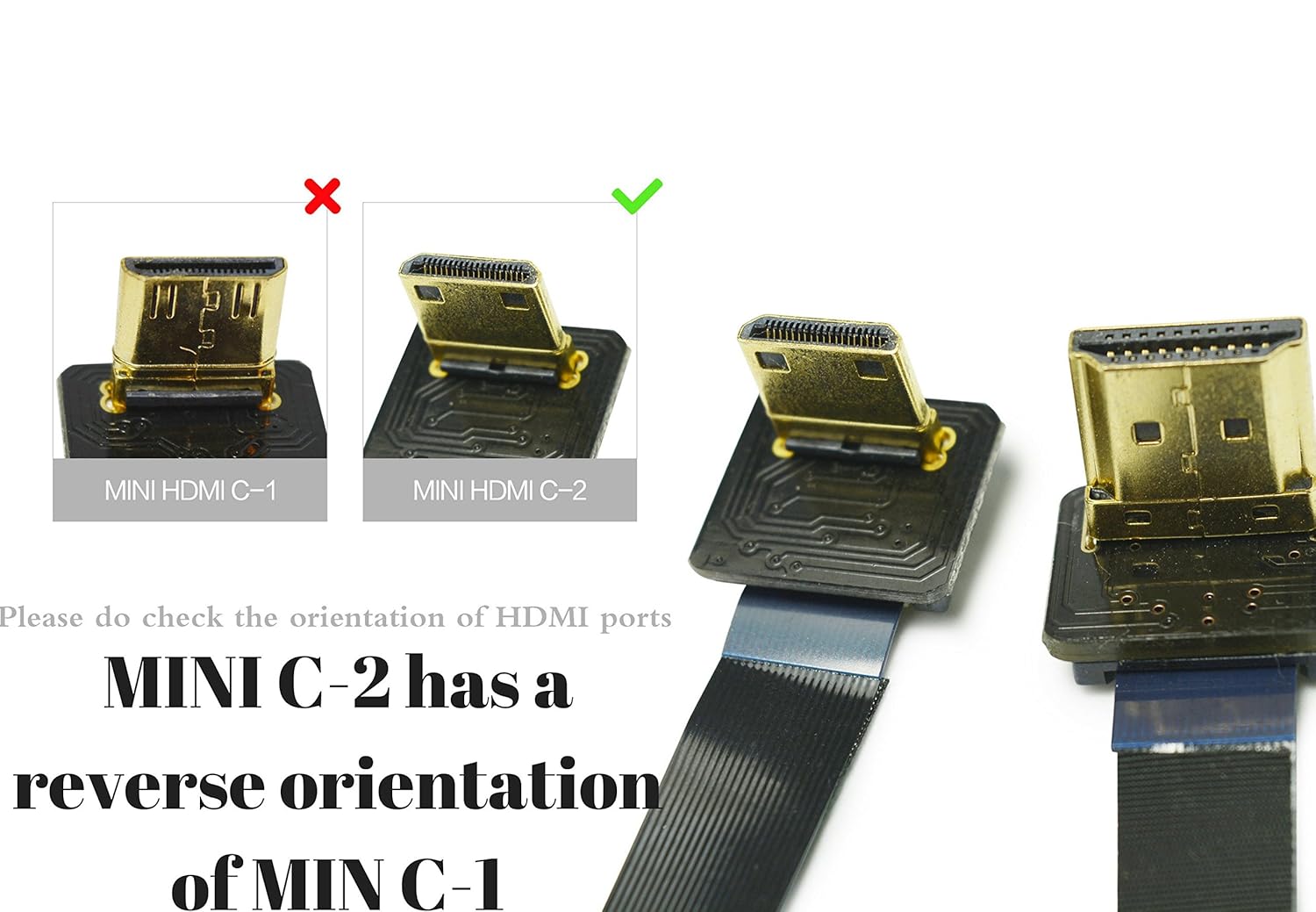

4.Mini C-1 is also a 90 degree MINI HDMI plug which has a reverse orientation of MINI C-2.
Please refer to:
20CM: ASIN:B073J4FLSG
50CM: ASIN:B073HYGBSP
5.Excellent quality,strong anti-interference capacity.Warm reminder:
1. Please do check the orientation of hdmi ends to ensure it fits
2.if you are looking for FPV ribbon cables with different ends and lengths(5cm-100cm)
Please be free to contact us.:)
3. Those ribbon cables are triple tested for reliability. Nonetheless, should you ever experience a cable failure, please contact us for immediate assistance.

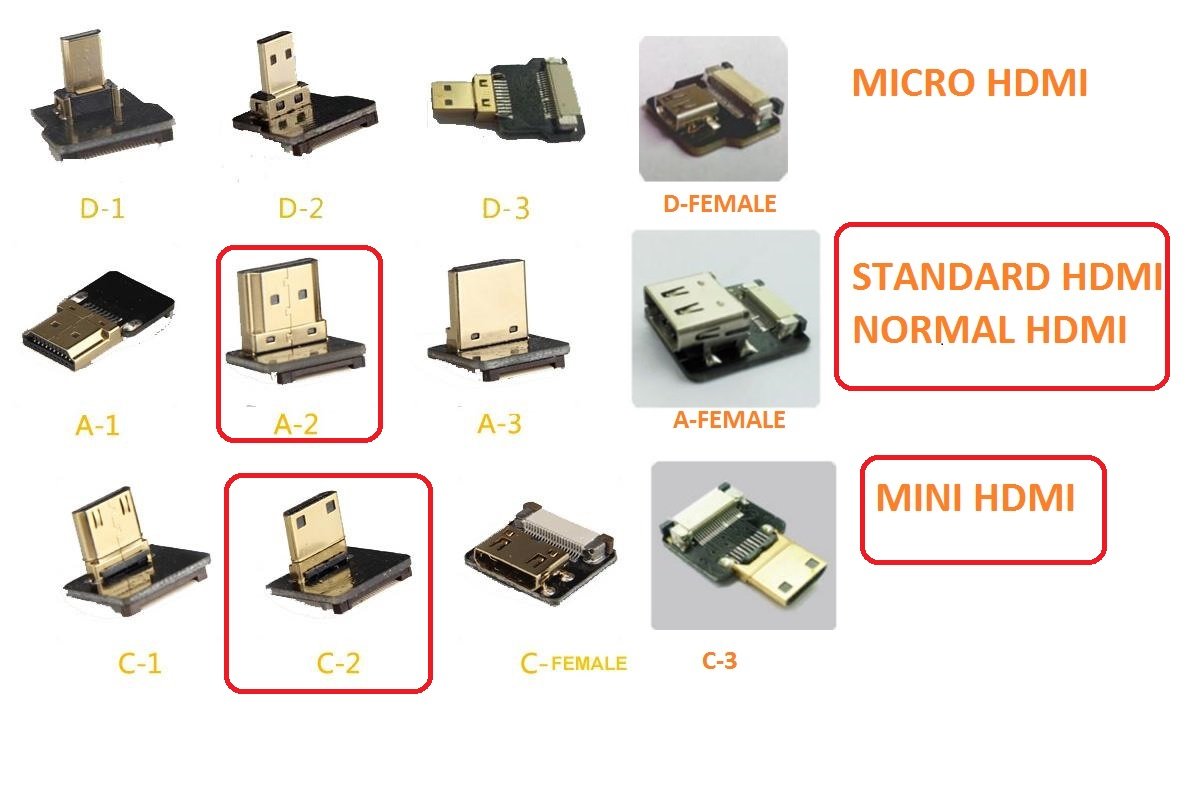

FPV HDMI RIBBON CABLES SPECIFICATION LISTS
12 types of HDMI ends:
1.MICRO HDMI (6X2.3mm) 4 types available:
MICRO D-1 90 degree ;
MICRO D-2 90 degree (reverse orientation of D-1);
Micro D3 straight plug
Micro female
2.Mini HDMI(10.5X2.5mm) 4 types available:
MINI C-1 90 degree;
MINI C-2 90 degree(Reverse orientation of C-1);
Mini HDMI straight plug;
MINI FEMALE plug
3. Standard HDMI 2.0 (14×4.5mm) 4types available:
Standard A-1 straight plug;
Standard HDMI 90degree A-2;
Standard HDMI A-3 90degree (Reverse orientation of A-2);
Standard FEMALE plug
Lengths available :5cm;10cm;20cm;30cm;40cm;50cm;60cm;80cm;100cm
Is Discontinued By Manufacturer : No
Package Dimensions : 3 x 2 x 1.25 inches; 0.16 ounces
Department : fpv
Date First Available : October 7, 2015
Manufacturer : Permanent
ASIN : B06Y4P1446
Available length: 30cm(Approximate: 11.8 inches) Flat ribbon HDMI cable for brushless gimbal handhold gimbal dsrl gimbal FPV ground monitoring FPV aerial photography and aerial shooting ect
Super soft low profile and lightweight .Only 5g new cables .There are two different 90 degree mini HDMI plug. MINI C-1 and MINI C-2 with reverse orientation.
Mini HDMI Male 90 degree to Standard HDMI Male interface 90 degree(MINI C-2 to Standard A-2)
Please do check the orientations of mini and standard hdmi ends to enure they fit your cameras
strong anti-interference capacity.Gold plated pins High quality
